Full Land Mining Machinery for Diamond Customization and After-sales Service

Model NO. : LM-3

Material : Carbon Steel

Material Feature : Oil Resistant

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

Energy Saving : Energy Saving

Warranty : 1 Year

Color : Multi Color

Customized : Customized

Condition : New

After-sales Service : 1 Year

Hooper Power : 10kw -50kw

Lifting Power : 2kw-10kw

Drum Scrren Power : 10kw-100kw

Water Pump Water Flow : 200m3-5000m3

Centrifuge Power : 7.5kw-50kw

Total Generator Power : 120kw-2000kw

Fule Consumption : 18L-500L

Generator Brand : Cummis . Weichai

Capacity : 100m3-500m3

Transport Package : Canvas and Container

Specification : Max. capacity 1000ton per hour

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8474100000

Supply Ability : 2500set /Year

Package Size : 1180.00cm * 500.00cm * 200.00cm

Package Gross Weight : 12000.000kg

Lead Time : 20 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Gravity Separator

Voltage : 380V

Weight : >10T

Samples : US$ 1000/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Full new design land mining machinery for diamond

1.General description :

Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material

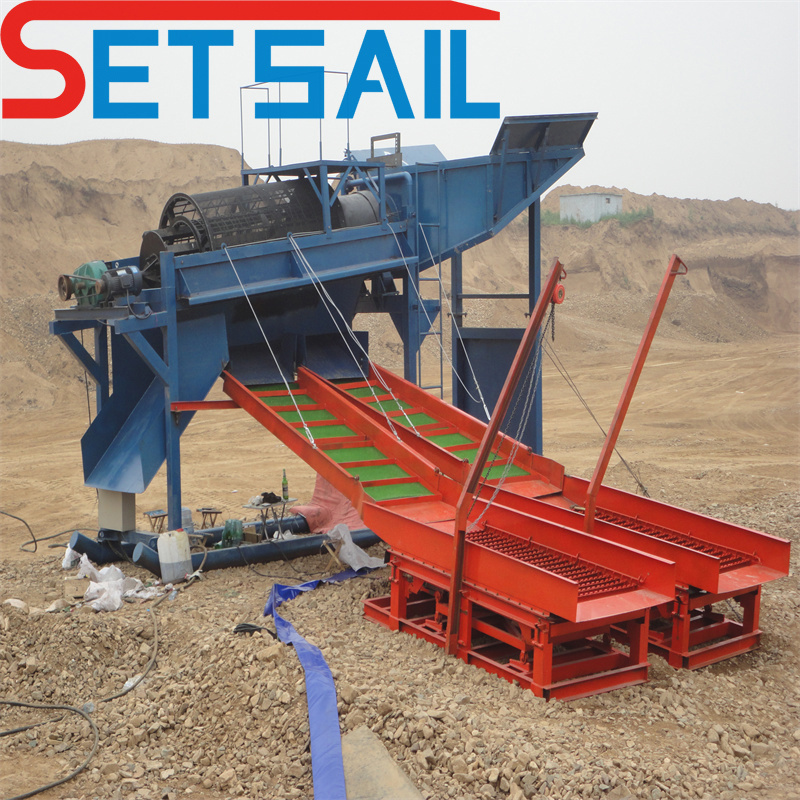

2.Picture:
Full Land Mining Machinery for Diamond Customization and After-sales Service

3.Fine selection device and description :
production processing and drawing :

land Material (gold .diamond .iron powder so on ) is feed into the storage with grille by excavator and loader,high pressure water released and wash the mineral by water pipe at the around storage,then,mixture mineral by forward into the drum screen .we are according to the matrial to choose the which kind of drum .(normally drum screen and agitation screen )according to the drum net mess to get the difference matierial .This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the fine mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. the mixture material is collected by the mining machinery( agiatation chute .jigger . concentration so on ) . so it is finished roughting .

1	Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate .
2	Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate .
3	Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading.
4	Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot.

4.Basic size and parameter :

set sail 120 land mining machienry :
Full Land Mining Machinery for Diamond Customization and After-sales Service

set sail 200 land mining machienry :

5.About Set Sail factory : Full Land Mining Machinery for Diamond Customization and After-sales Service

6.Made In China Platform authentication :
7.Feature:

1	simple structure . portable machiner conbine togehter
2	This machiner can elect gold and diamond in the same time
3	High recovery gold and diamond ratio.
4	Low failure . High capacity .

8. Our service :

1	we can send the export enginer to the site before doing the design . help the customers get the accurate design and solution
2	we can let the customers what know hwo well the equipment by the video
3	we can provide the 1-2 warrant and longlife technology support
4	Testing product before delivery product
5	Assist customers in formulating construction plans
6	Free guide to equipment installation and debugging
7	Train technical staff for customers
8	we can send the engginer to the aboard for installation and free training wrokers
