QHLMM-10 Selecting Gold and Diamond Mining Machinery From The Land Capacity 100m3-500m3

Model NO. : QHLMM-10

Material : Carbon Steel

Material Feature : Oil Resistant

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

Energy Saving : Energy Saving

Warranty : 1 Year

Color : Multi Color

Customized : Customized

Condition : New

After-sales Service : 1 Year

Hooper Power : 10kw -50kw

Lifting Power : 2kw-10kw

Drum Scrren Power : 10kw-100kw

Water Pump Water Flow : 200m3-5000m3

Centrifuge Power : 7.5kw-50kw

Total Generator Power : 120kw-2000kw

Fule Consumption : 18L-500L

Generator Brand : Cummis . Weichai

Capacity : 100m3-500m3

Power : Generator Sets

Diesel Engine : Cummins

Generator Sets : Stanford

Product Brand : Set Sail

Product Name : Land Mining Machinery

Application : Sand Gold and Diamond

Transport Package : Canvas and Container

Specification : Max. capacity 1000ton per hour

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8474100000

Supply Ability : 2500set /Year

Package Size : 800.00cm * 300.00cm * 200.00cm

Package Gross Weight : 13000.000kg

Lead Time : 30 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Gravity Separator

Voltage : 380V

Weight : >10T

Samples : US$ 1000/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Selecting gold and diamond mining machinery from the land

General description :

Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material

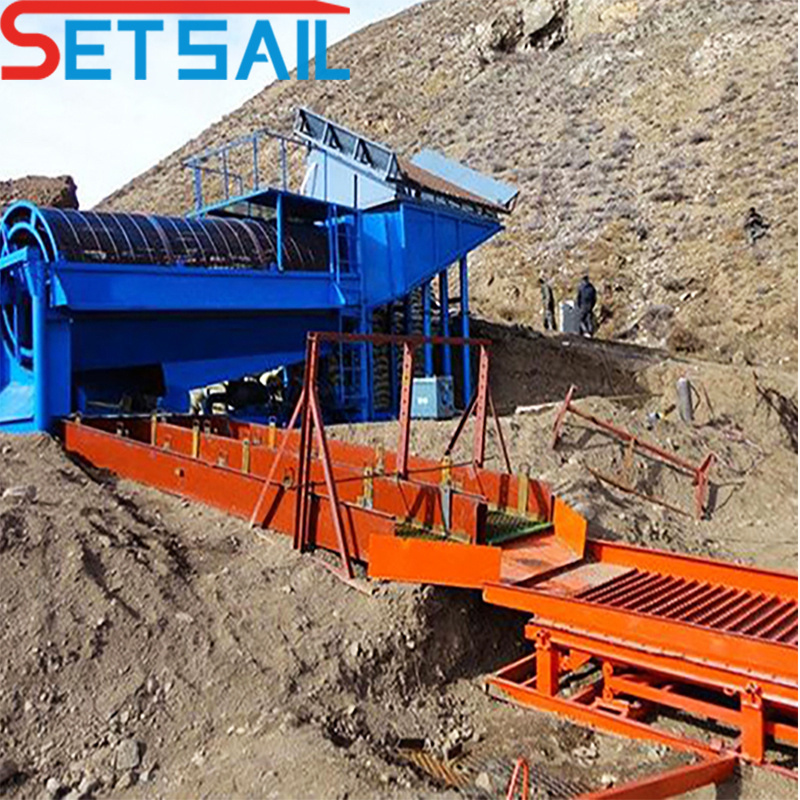

Picture:
material feeds into the hopper with grille is lifted up by loader and excavator . This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spiral chute, jig, sluice, etc.
Our trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.

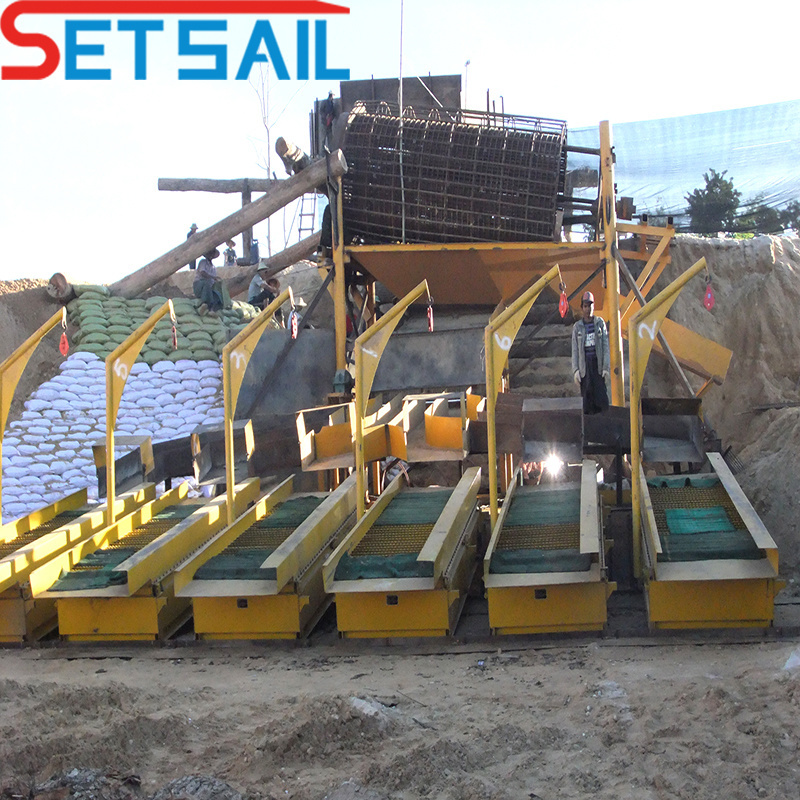

QHLMM-10 Selecting Gold and Diamond Mining Machinery From The Land Capacity 100m3-500m3

Fine selection device and description :

1	Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate .
2	Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate .
3	Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading.
4	Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot.

Basic size and parameter :

Model	Capacity (t/h)	Power (Kw)	Drum dia. (mm)	Drum len. (mm)	Screen size (mm)	Dimension (mm)	Weight (Kg)
1015	10-15	4	1000	1500	2-25	340015002030	2200
1020	15-25	5.5	1000	2000	2-25	380815002130	2800
1225	25-40	7.5	1200	2500	2-25	417615062232	4200
1230	40-60	7.5	1200	3000	2-25	478015062450	4800
1530	60-80	11	1500	3000	2-25	553518602525	5100
1545	80-150	15	1500	4500	2-25	702118602528	6000
1848	150-200	22	1800	4800	2-25	740021503000	7500
2055	200-260	30	2000	5500	2-25	850025003600	8600

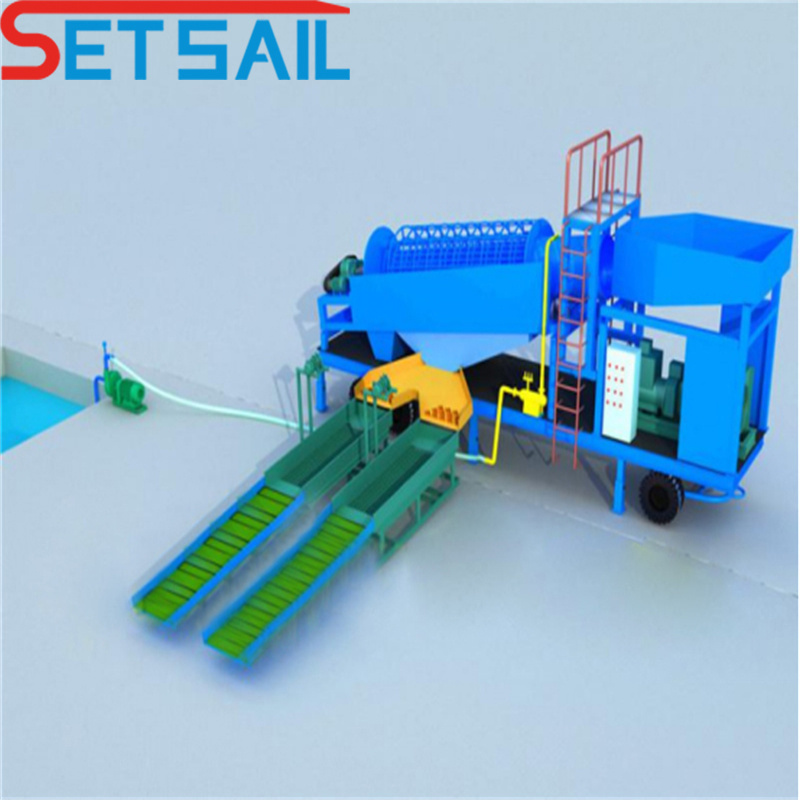

set sail 120 land mining machienry :
QHLMM-10 Selecting Gold and Diamond Mining Machinery From The Land Capacity 100m3-500m3

set sail 200 land mining machienry :

About Set Sail factory :

1	30 years' dredger manufacture workmanship. especially large water flow dredger field .
2	Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger.
3	Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service .
4	6 manufacture shops .R&D center, testing pool.
5	Large production. ISO 9001 2015 quality system. CE certification so on .
6	Presences more than 40 countries.
