10T Washing Sand Gold Machine with Crusher Lifelong After-sales Service and Efficiency

Model NO. : QHSM-25

Material : Carbon Steel

Material Feature : Heat Resistant

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

Energy Saving : Energy Saving

Warranty : 2 Years

Color : Multi Color

Customized : Customized

Condition : New

After-sales Service : Lifelong

Processing Capacity : 50m3-500m3/H

Length : 15m-30m

Main Reducer Model : 650

Acessory Reducer Size : 250

Max. Water Consumption : 200m3

Total Power : 55kw-200kw

Digging Motor Power : 75kw

Drum Screen Motor Power : 7.5-15kw

Generator Power : 75-250kw

Total Length : 31-60m

Total Width : 5-7.5m

Total Height : 1.2-2m

Product Brand : Set Sail

Generator Brand : Cummins Plus Stanford

Product Name : Mining Dredger

Transport Package : Canvas

Specification : Max. capacity 500m3

Trademark : Set Sail

Origin : China

HS Code : 8474100000

Supply Ability : 2500set /Year

Package Size : 3800.00cm * 750.00cm * 150.00cm

Package Gross Weight : 120000.000kg

Type : Gold Mining Machinery

Voltage : 380V

Weight : >10T

Samples : US$ 4000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Hot Selling Washing sand gold Machine with Crusher

1. General description:

Wheel sand washing machine (stone washing machine )driven by the motor and reducer keep the impeller in the water tank making the circular to get rid of silt and others .after sand is cleared through the mesh in the wheel to into the belt converyor to the destination . if the sand so dirty we use the double water wheel washing wheel sand washing machine. wheel sand washing machine combins with crusher and drum scrren so on equipment to make the complete the production line

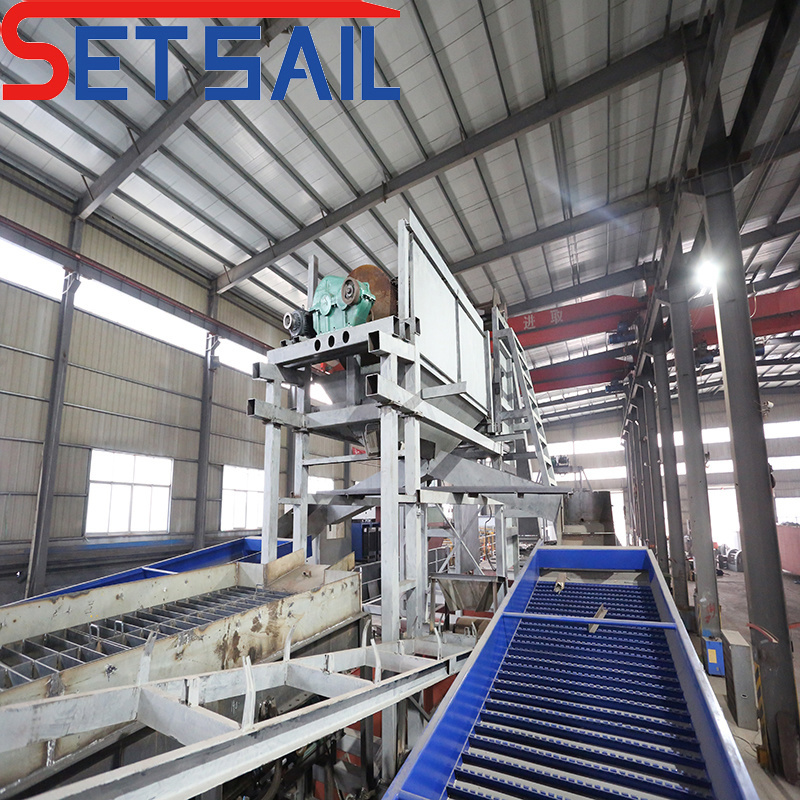

2.Product picture :
mining dredger overview :
Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water

mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .

10T Washing Sand Gold Machine with Crusher Lifelong After-sales Service and Efficiency

3. Basic parameter :

Basic Parameters of Sand Washer
Type	QHSWM12-26	QHSWM15-28	QHSWM18-30	QHSWM20-30
Dimension(LWH)	3400x2300x2700	3600x2800x2900	3800x3100x3100	3800x3400x3100
Water wheel dimension	φ2600x1200double row	φ2800x1500double	φ3000x1800triplex	φ3000x2000triplex
Material	8mm	8mm	10mm	10mm
Feeding hopper dimension	3400x1300	3600x1600	3800x1900	3800x2100
Material	4mm	4mm	5mm	5mm
Working capacity m³/h	50-60	80-100	120-150	150-180
Max.approval grain size(mm)	≤12	≤12	≤12	≤12
Main Power(kw)	7.5kw-4	11kw-4	15kw-4	18.5kw-4
Submersible pump
Power	5.5kw	7.5kw	7.5kw	5.5kw x2
Clean Water Flow m³/h	60	65	65	60
Conveyor
Length mm	10000	10000	10000	10000
Belt width mm	600	800	1000	1000
Frame material	12#channel steel	12#channel steel	12#channel steel	14#channel steel
Electromotor kw	5.5	7.5	11	15

4.Product advantage:

1	Very simple and fast assembly and dis-assembly. simple operation .easy to control.
2	Self propulsion system. can be propulsed in place when moved.
3	High efficience. large output and long distance of pump.Pumping depth reaches up to 20-30m underwater
4	Hull consists of multiple pontoons connected by proven coupling system.
5	Highly efficient fuel consumption and minimum overall operational costs
6	Good access to all parts.especially the dredge pump wearing parts.Fresh water cooling system
7	OEM. ODM. ISO .CE .customization are available

5.our wrokshop:

6.our factory :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .
