Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Model NO. : QHTSHD-4

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 1year

After-sales Service : Lifelong

Diesel Engine Power : 110kw-2000kw

Water Flow : 100m3-20000m3

Dredging Depth : 4m-15m

Capacity : 500m3-5000m3

Draught : 0.85m-15m

Total Length : 17m-50m

Total Width : 4.5m-12m

Total Depth : 1.5m-5m

Bottom Plate Thickness : 6mm-20mm

Side Plate Thickness : 6mm-20mm

Front Plate Thickness : 5mm-20mm

Engine Brand : Cumins

Sand Pump Brand : Shijiazhuang

PLC Brand : Siemens

Hydraulic Brand : Rexroth

Transport Package : Canvas

Specification : Capacity 50m3-4000m3

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 1500.00cm * 500.00cm * 225.00cm

Package Gross Weight : 60000.000kg

Type : Trailing Suction Hopper Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 2000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Trailing suction hopper sand dredger for river silt and mud

General Description :

Trailing suction hopper dredger is self-propelled and non-self propelled . the dredging pump drives the front of the screw rake head to churn .cut collection to the underwater position . and through the suction pipe to get the bottom silt .sand .and other loose material with water then through the the discharge pipe to transport to destination .during the dredger working process in resevoir . in order increase the suction mud effective . we add the jet in the front of suction pipe to increase the concentration . this type of trailing hopper scution dredger is suitable for underwater sandy and non-viscous soil . as well as soft and easily flowing mud.

Trailing suction hopper dredger picture :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Trailing suction hopper dredger advantage :

1. Widely operation area	2.Easily operation
3.Less wastage	4.High efficient

Basic parameter :

Model	QH-150	QH-200
Tolal dimention	17m4.5m1.5m	20m6m1.7m
Dredging depth	5-6m	6-8m
Capacity	150m3	200m3
Thinckness of steel plate	Bottom : 6mm Side: 6mm Front :5mm	Bottom :6mm Side : 6mm Front : 5mm
Main engine power	230kw	300kw
Pump water flow	500m3	800m3
Draught	0.85m	0.9m

product features :

1	One-man operation. The most advanced Siemens PLC control system.
2	New highly effective cutter /wheel drive system
3	Reliable hydraulic system.
4	Fresh water cooling system
5	Completely assembled and fully tested before delivery
6	Very simple and fast assembly with experienced engineers.
7	Standard design, allowing short delivery times
8	Standard spare parts available from stock
9	Designed as standard to qualify for Coastal Waters Certificate
10	Optional equipment available such as spud carriage. anchor boom. DGPS System

Main product introduce :

Main diesel engine :

Make: Cumins.

Power: 3500kw we can according to the requirements offer all size diesel engine

Rpm: 1700r/min.

Cylinders:12-16.

Feature:High efficient . full output long continuous working time. low failure.

High pressure pump:

Make:Shijiazhuang .

Water flow:7500m3/h.(3000m3-15000m3/h can available).

Pump size : WN700

Head :66m.

Capacity:1500m3/h

Discharge distance : 2500m( Booster station can available for long discharge distance )

Feature: Full power working . The biggest output . long service life .low failure.

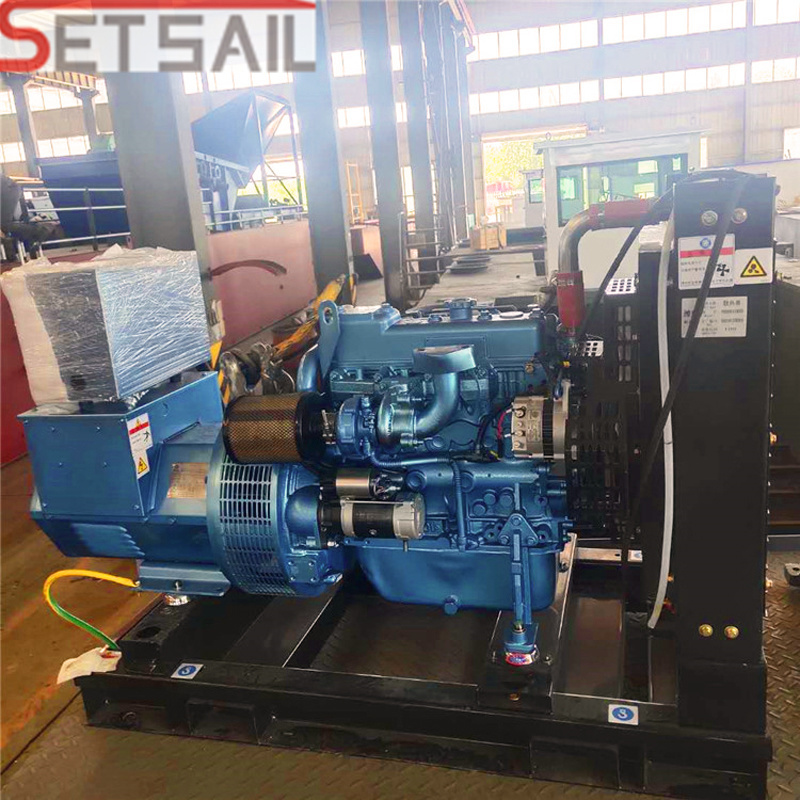

Generator set :

Brand : Normal Cumins (we can according to the customer requirements to offer others brand )
We can support all models on my all dredging machinery .

Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Trailing suction hopper dredger in factory :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Packing and shipment :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Customers feedback :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Customers visit our factory :
Set sail cutter suction dredger exported all parts of the wold . Nigeria .Bangladesh .Malaysia .Philippines.Cameroon . India .Vietnam .Congo more than 70 countries.our high quality products timely professional and high efficiency service let our customers without worries more and more customers favor our products.

Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Company profile :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .

Certification :
Front Plate Thickness 5mm-20mm Trailing Hopper Suction Silt Dredger with Hydraulic System
