380V Bucket Chain River Mining Gold Dredge for Corrosion Resistant Material and River

Model NO. : QHCBD-8

Material : Carbon Steel

Material Feature : Corrosion Resistant

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

Energy Saving : Energy Saving

Warranty : 2 Years

Color : Multi Color

Customized : Customized

Condition : New

After-sales Service : Lifelong

Power : Diesel Engine Generator Sets

Application : River Gold and Diamond

Gold Equipment : Agitation Chute

Diamond Equipment : Jigging

Deal Capacity : 50-300m3

Dredging Depth : 2-30m

Transport Package : Canvas

Specification : carbon material chain bucket mining dredger

Trademark : Set Sail

Origin : China

HS Code : 890510000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 500.00cm * 150.00cm

Package Gross Weight : 110000.000kg

Lead Time : 40 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Flotation Separator

Voltage : 380V

Weight : >10T

Samples : US$ 2000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Bucket Chain River Mining Gold Dredge for river

1.Company profile :

Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is one of the leading dredging factory in China . Cutter suction dredger river mining machinery land mining machinery Chain bucket sand dredger jet suction dredger service working boat trailing hoper dredger Wheel bucke suction dredger so on .our product are exproted all part of the world such as Aisa,Afrrica,South America,Middle Easr and other regions.

2. Product featers :

380V Bucket Chain River Mining Gold Dredge for Corrosion Resistant Material and River

The dredging bucket rotates around the underwater dredging wheel. scooping up the solid in the riverbed. then trommel classifier. with single layer or double layer screens. will separate the gravels. clay balls. water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge.pulsating sluice box and fixed sluice box. After 3 process of gold panning. the gold recovery percentage can be upto 90%.

Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles. the bucket chain type is one perfect choice.

3.FAQ:

1	How many cubic meter per hour for the deal capacity?
2	How many meters for the dredge depth?
3	In the dredging raw ore, the sand & stone percentage? stone's size in mm?
4	. the gold particle size in mm?
5	if you will require the diesel generator? and any special requirement for the generator brand?

4. Product picture:

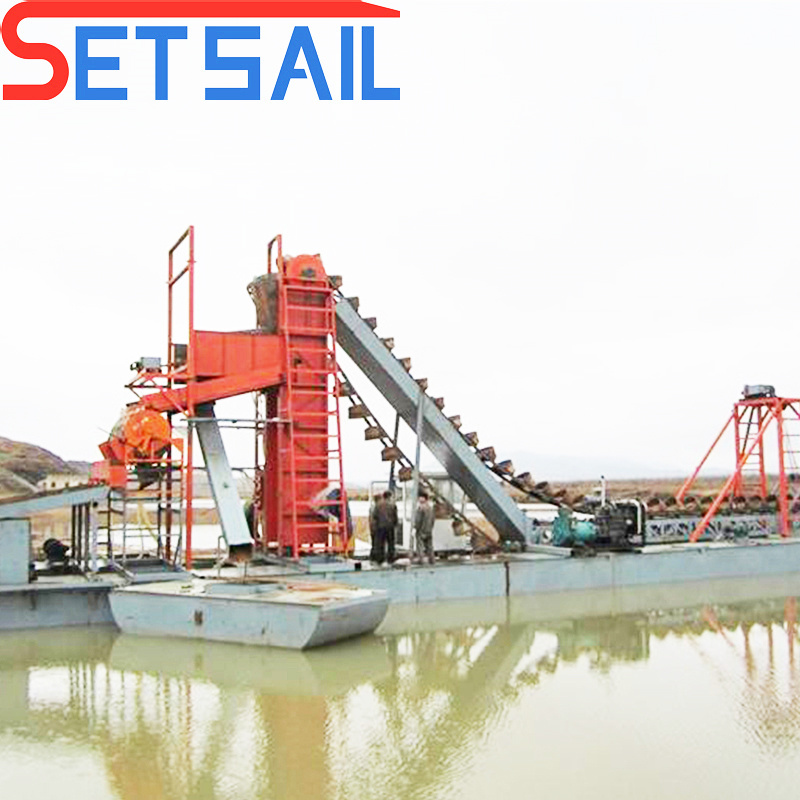

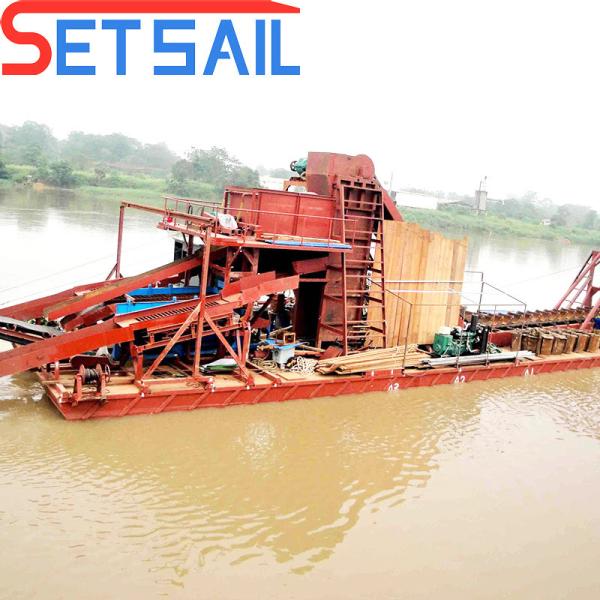

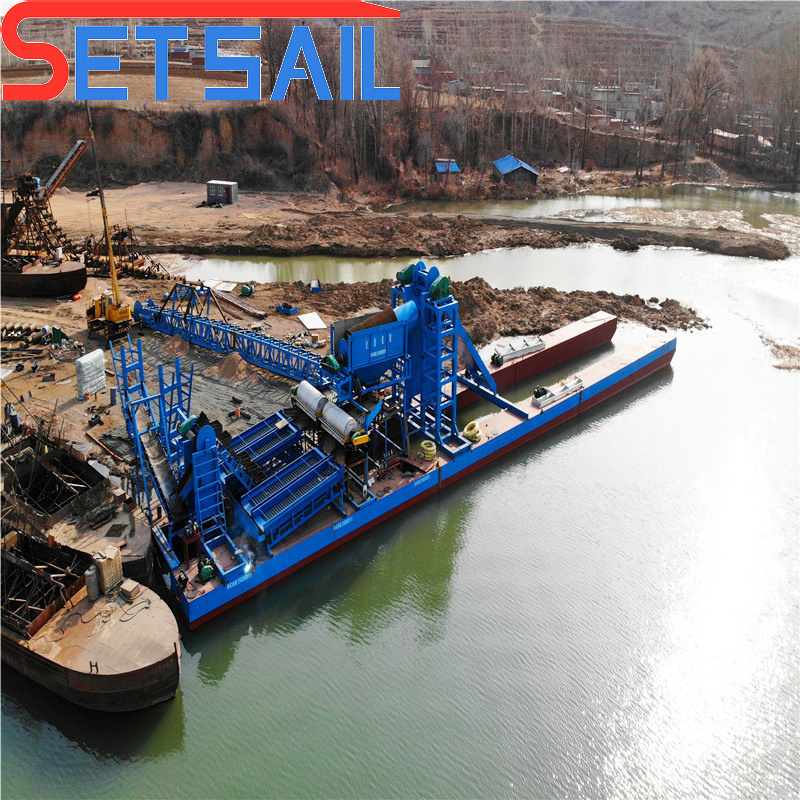

mining dredger overview :
Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water

mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .

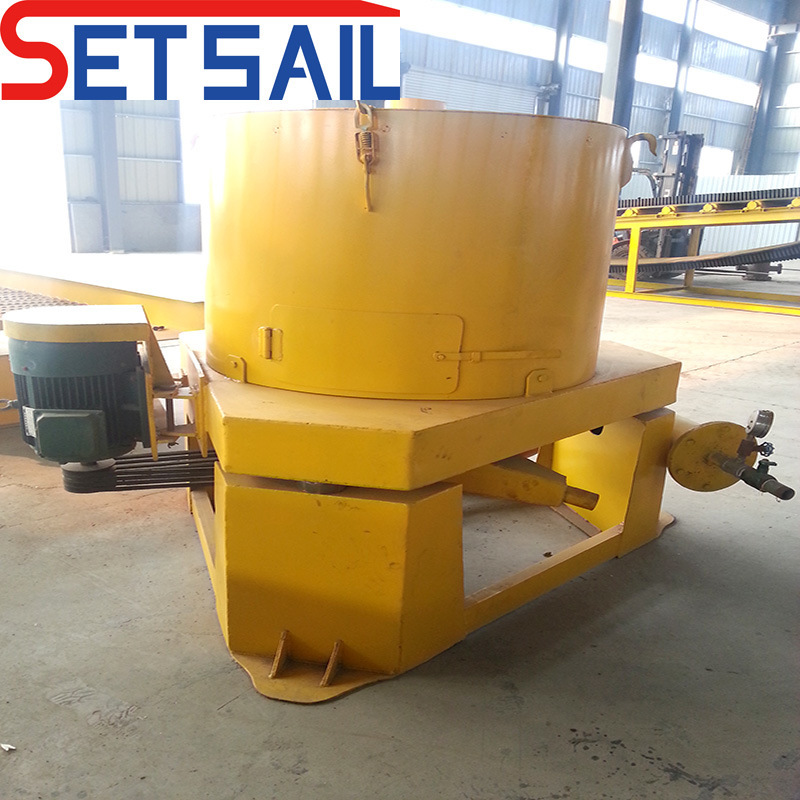

5. Mainly part picture:

gold dredger working principle :

Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working .

6. Selecting mining equipment picture:

7.Specification :

Model	HJ-M60	HJ-M80	HJ-M100	HJ-M120	HJ-M150
Hull size	244.51	275.41	304.81	357.61.2	386.61.2
Dredging depth	7m	12m	13m	15m	18m
Drum screen(L*DIA)	1.4*1.2	2.4*1.4	2.4*1.4	2.4*1.4	2.6*1.5
Drum screen power	5.5KW	5.5KW	5.5KW	7.5KW	11KW
Generator power	75KW	75KW	75KW	75KW	75KW
Chain bucket quantity	86	62	62	86	86
Chain bucket capacity	0.035KG	0.05KG	0.08KG	0.08KG	0.08KG
Chain quantity	172	124	124	172	172
Chain size	60010030	60010030	80010035	80012040	80012040
