Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge

Model NO. : QHM-23

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 2year

After-sales Service : Lifelong

Total Length : 24m-38m

Dredging Depth : 7m-30m

Maxi.Capacity : 500m3

Drum Screen Dimension : 1.4m*1.2m-2.6m*1.5m

Drum Screen Power : 5.5kw-50kw

Generator Power : 75kw-200kw

Main Dredging Motor Power : 37kw-200kw

Lifting Motor Power : 7.5kw-50kw

Water Pump Power : 7.5kw-50kw

Bucket Capacity : 0.035-0.08m3

Bucket Quantity : 62PCS-82PCS

Chain Quantity : 124PCS-172PCS

Generator Sets : Cummins Stanford

Diesel Engine Brand : Cummins

Product Brand : Set Sail

Transport Package : Canvas

Specification : Capacity 60m3/h-500m3/h

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 4600.00cm * 880.00cm * 150.00cm

Package Gross Weight : 120000.000kg

Type : Chain Bucket Mining Dredger

Power Type : Electric

Cyclone Type : Hydrocyclone

Samples : US$ 2000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

  : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

River mining diamond dredger with chain bucket and centrifuge
1. Chain bucket gold dredger discription :
mining dredger overview :
Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water

mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .

Working principle : Chain bucket mining dredger uses the bucket chain to digging the mixture from the river . lake and sea . mixture contains sand. stone .mud .gold and diamond so on . the mixture is transported to the drum screen the according to the different size of material to seprate . different size material into the different election equipment . agiation chute and fixed chute for the river gold . jigging and centrifuge for diamond . all power from the generation sets to drive the all electrical motor .water pump and hydraulic equipment . all tail material can recycline and into the river .

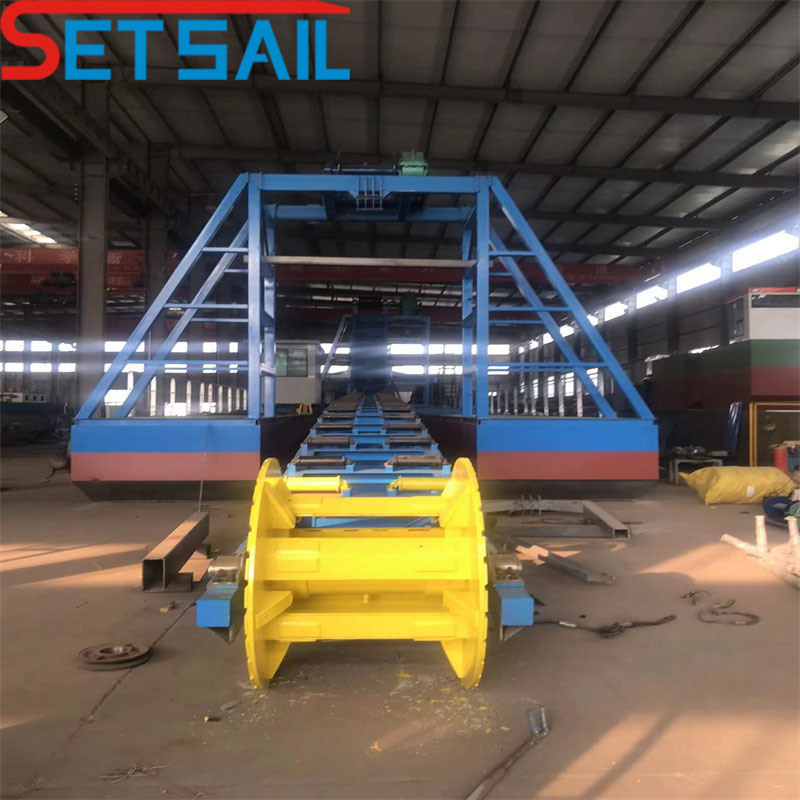

Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge

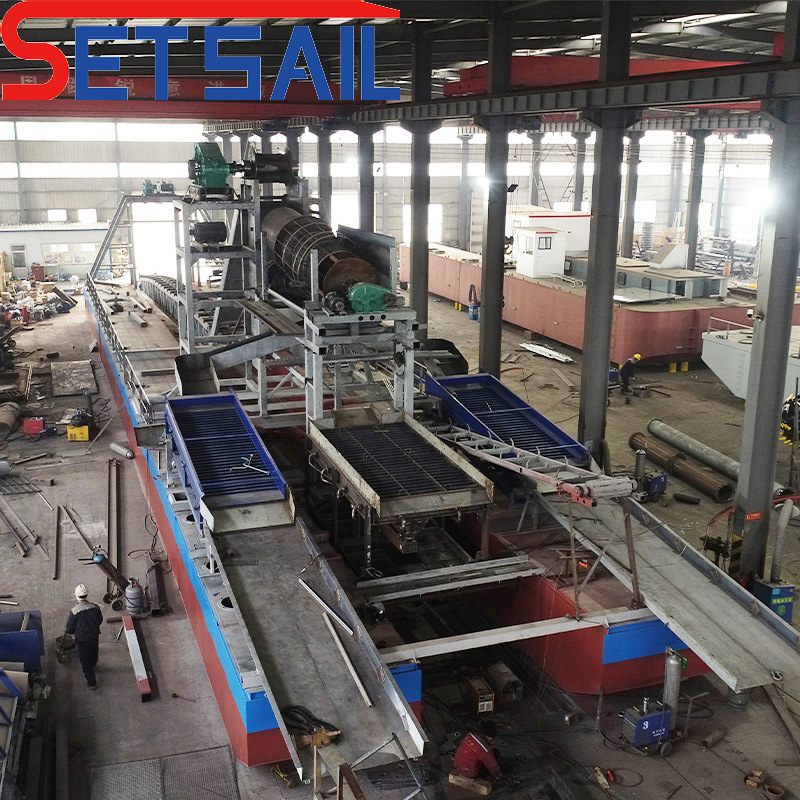

Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge


2.Chain bucket gold dredger working principle :
material feeds into the hopper with grille is lifted up by loader and excavator . This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spiral chute, jig, sluice, etc.
Our trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
3.Chain bucket gold dredger picture :

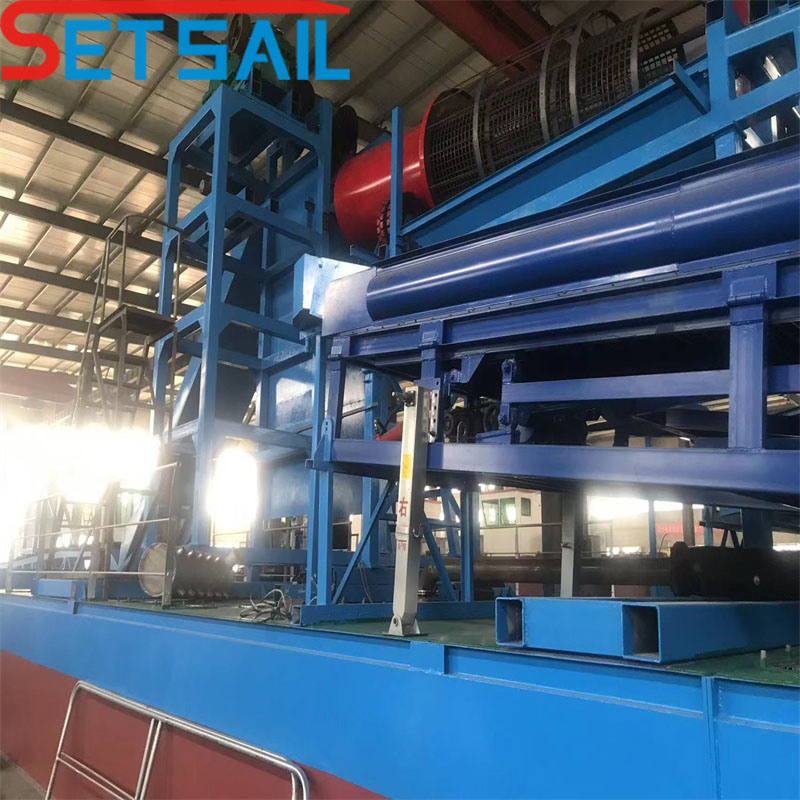

Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge

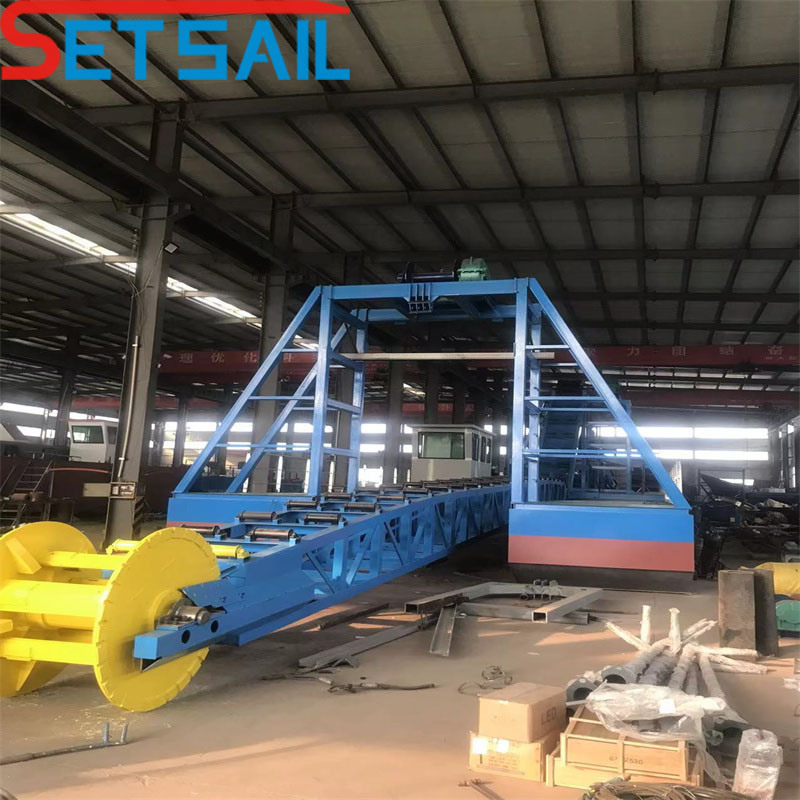

Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge

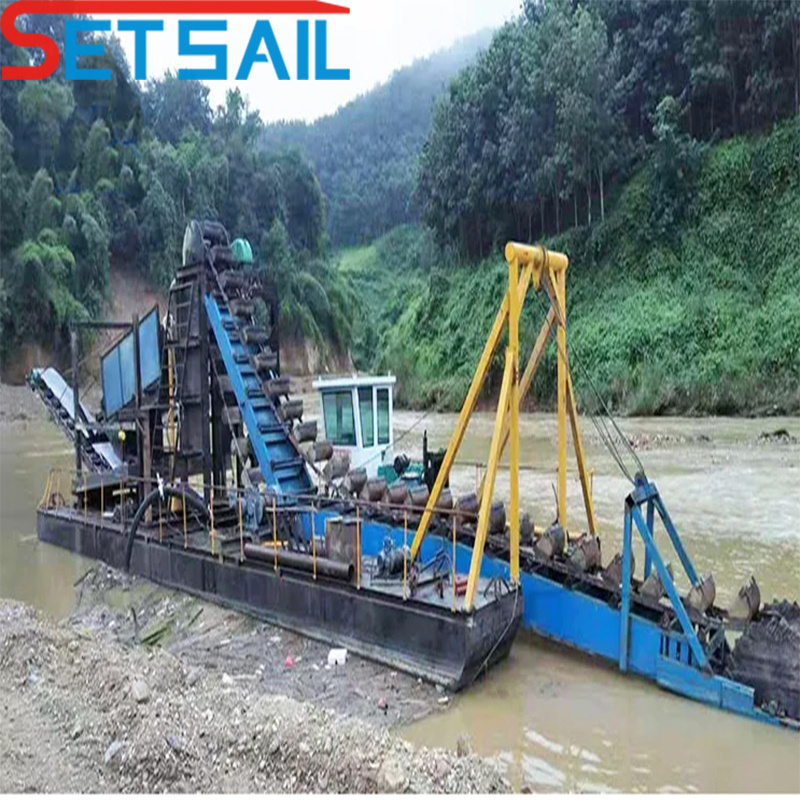

Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge

4.Chain bucket gold dredger basic parameter:
Item \type Hull size Dredging depth Drum scrren power Generator power and brand Dredging power Lifting power Chain bucket capacity
QH-60 24m 7m 5.5kw Cummins /75kw 35kw 7.5kw 0.035m3
QH-80 27m 12m 5.5kw Cummins/75kw 55kw 18kw 0.05m3
QH-100 30m 13m 5.5kw Cummins /75kw 55kw 22kw 0.08m3
QH-120 35m 15m 7.5kw Cummins/75kw 75kw 22kw 0.08m3
QH-150 38m 18m 11kw Cummins /75kw 75kw 22kw 0.08m3
5.workshop :
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
6.packing and shipment:
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
7. Setsail service :
1

Profestional people serve the technical consult.
2

All the mining machinery can be coustomed.
3

We are factory which can provide the higher quality and lower price.
4

Offering spare parts at a discounted price.

5

Responsible Sales team design team manufacture team available 24/7 to best serve clients.

6

Free repair if quality problems happen.
7

Provide professional service and providesolution in a timely manner.
8

Free field Installation commissioning training and and free product drawings.
8.Product feature :
The dredging bucket rotates around the underwater dredging wheel. scooping up the solid in the riverbed. then trommel classifier. with single layer or double layer screens. will separate the gravels, clay balls. water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge.pulsating sluice box and fixed sluice box. After 3 process of gold panning. the gold recovery percentage can be upto 90%.
Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles. the bucket chain type is one perfect choice.
9. Customers visit factory :
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
10. Customer feedback :
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
11.Company profile :
Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
Factory has manufacture experience more than 20 years.
More than 50 certificated engineers and technicians.
We have certification and patent more than 50 item. It contains ISO CE etc.
Set Sail dredger is sold more than 80 countries .
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
12.FAQ:
1 the gold particle size in mm?
2 if you will require the diesel generator? and any special requirement for the generator brand?
3 In the dredging raw ore, the sand & stone percentage? stone's size in mm?
4 How many meters for the dredge depth?
5 How many cubic meter per hour for the deal capacity?
13.Factory certification :
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
14. Mainly product :
Total Length 24m-38m River Mining Diamond Dredger with Chain Bucket and Centrifuge
