Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

Model NO. : QHCSE-22

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 1year

After-sales Service : Lifelong

Capacity : 60-4000m3

Water Flow : 450-20000m3

Discharge Distance : 500-5000m

Total Weight : 28-1000t

Total Length : 16.5-50m

Width : 3.2-12.2m

Hight : 1.26-5m

Bottom Plate Thickness : 6-20mm

Front Plate Thickness : 6-25mm

Deck Plate Thickness : 6-20mm

Side Plate Thickness : 6-25mm

Pump Head : 39-65m

Pump Discharge /Suction Pipe : 200-900mm

Main Engine Power : Cummins 160kw-3000kw

Auxiliary Enigne Power : Cummins 100kw-2000kw

Transport Package : Canvas

Specification : Dredging depth 1-30m

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 1800.00cm * 380.00cm * 200.00cm

Package Gross Weight : 36000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 150000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Europe sand pump cutter suction dredger for river mud

1. Product discription :

Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

Setsail cutter suction dredger is the most popular dredging eqipment recently . it is widly used in the all kinds of dredging project . it is suitable for river .lake .sea . reservoir . port construction so on . it can process the sand mud silt and all kinds of mixture . full automatic hydraulic control system . Cummins CAT Weichai so on diesel engine . PLC Siemens . Rexroth hydraulic .Shijiazhuang pump and europe brand so on famous equipment on our cutter suction dredging equipment . in addtion . full electric power is used on our cutter suction dredger

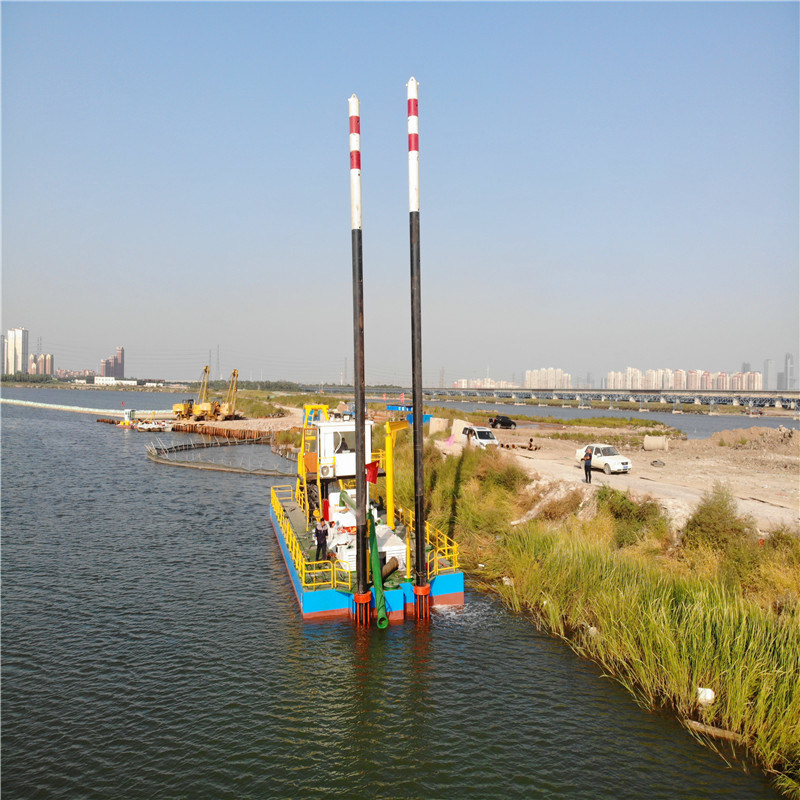

2. Product pictures:
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

3.Each part of cutter suction dredger explain :
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

4.Dredging equipment basic parameter :

Item /size	8inch	10 inch	12inch	18inch	20inch	24inch	26inch
Capacity (m3)	160	300	400	700	1000	1400	1800
Dredging depth(m)	8	8	12	15	15	18	18
Discharge distance (m)	1000	1000	1000	1500	1500	1500	1500
Total weight (t)	85t	90t	120t	180t	230t	360t	380t
Pump size	250	350	400	450	500	600	650
Water flow (m3)	800	1500	2000	3500	5000	7000	9000
Discharge pipe dia.(mm)	250	350	400	450	500	600	650
Diesel engine brand	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins
Main engine power(kw)	230	456	557	1137	1335	1620	1950
Auxiliary engine power(kw)	100	122	200	260	405	700	700
Cutter head power (kw)	50	64	78/108	180	260	450	450
Cutter head diameter(mm)	1000	1200	1450	1800	2000	2400	2400
Hydraulic gerbox brand	Fada	Fada	Fada	Fada	Fada	Fada	Fada
Hydraulic system brand	Rexroth	Rexroth	Rexroth	Rexroth	Rexroth	Rexroth	Rexroth
Anchor boom length(m)	6	9	12	15	15	18	18
trolley stroke(m)	2.5-3.5	2.5-4	2.5-4	4-6	4-6	6-8	6-8
Notice: Above parameter is accurate and real infromation .cutter suction we can do maximum water flow more than 20000m3 maximum discharge distance over 5 kilometer .maximum dredging depth over 30 meter .

5.Cutter suction dredger manufacture process :
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

1 step	Purchase the consist standard marine plate . Cummins engine . Shijiazhuang slurry pump and Rexroth so on
2 step	Cut all kinds of plate and partial welding
3 step	Welding for the hull . including the main pontoon side pontoon so on .
4 step	Assemble the configuration device including engine pump hydraulic system cutter head generater set anchor boom so on
5 step	Painting for all product body . advanced anti-crrosion technology to protect the cutter suction dredging equipment
6 step	Testing dredging equipment in the pool . testing for wate flow capacity dredging depth diesel engine pump hydraulic systme PLS etc.

6.Sucessful case :
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

Our dredging equipment are exported more than 200 area and 100 contries . such as Nigerial. Malaysia. Bangladish . Cameroon .South Africa. Congo .Indonesia. Philippines. so on.

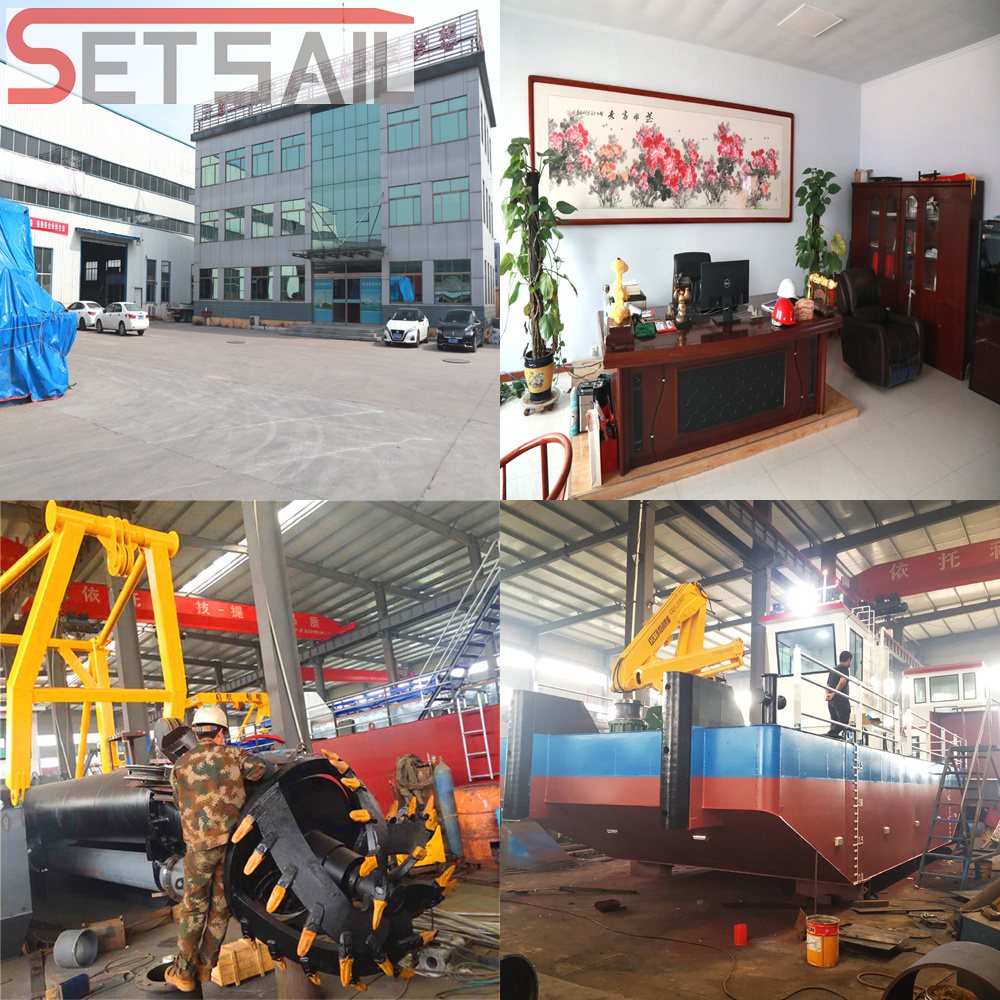

7.Factory workshop picture:
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

8.Factory introduce :

Qingzhou Setsail Dredging Machinery Equipment Co., Ltd. Is located in Qingzhou City Shandong Province China. total area near 90,000 m2. and more than 25 years manufacturing experience in water area environmental protective equipment. It is a professional supplier of integrated with R&D, consultation, manufacturing and after-sale service. now has obtained many certifications: CE, ISO9001:2015, ISO14001:14001, ISO45001.

The main productions like Cutter suction dredgers. Wheel bucket sucion dredger . chain bucket gold dredger . multi -fuction service working boat aquatic weed harvester and related equipment have been exported to near 100 areas and countries.

Setsail factoruy as the high-end brand and has been highly reputed by customers of its products' durable, high efficiency, low break down, short delivery time and professional field service.

With professional engineer teams. global trading teams. professional production process and CCS certified welders lead to Setsail's fast development today. Setsail is committed to creating a world famous brand in the field of water environment protection.

9.Customer visit:
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud

10. Factory certification :
Cummins 100kw-2000kw Auxiliary Engine Powered Cutter Suction Dredger for Europe River Mud
