36000.000kg Package Gross Weight River Sand Suction Dredger with Cutter Head and Mud Pump

Model NO. : QHCSD-138

Slot Type : CTD

Customized : Customized

Condition : New

Warranty : 1 Year

After-sales Service : Lifelong

Total Length : 25m

Total Width : 6.2

Total Depth : 2

Total Weight : 130t

Main Engine Brand/Power : Cummins /559kw

Auxiliary Engine Power : 200kw

Pump Size : 250

Head : 40m

Dredging Depth : 10m

Discharge Distance : 1200m

Discharge Pipe Diameter : 250mm

Cutter Head Power : 60kw

Anchor Boom Length : 12m

Cutter Head Diameter : 1350mm

Total Fuel Consumption : 87kw

Transport Package : in Bulk or Container

Specification : Capacity 400m3/h

Trademark : Set Sail

Origin : China

HS Code : 895100000

Supply Ability : 2500set /Year

Package Size : 1900.00cm * 380.00cm * 200.00cm

Package Gross Weight : 36000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Dense Medium Cyclone

Samples : US$ 4000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

River Sand suction dredger with cutter head and mud pump

1.Parameter of 12 inch cutter suction dredger :

Dredging depth	10m
Capacity	300m3
Discharge distance	1200m
Draft	1.2m
Total weight	130t
Total length	25m
Total width	6.2m
Total hight	2m
Main pump size	300ND
Water flow	1500m3
Head diameter	1350mm
Speed	11/22/33
Discharge distance pipe diameter	250mm
Main engine power/brand	559kw
Auxiliary engine power /brand	200kw
Pump Gearbox brand	Fada
Speed ratio	2:1
Hydraulic gearbox brand	Fada
Cutter head diameter	1350mm
Cutter head power	60kw
Spud diameter /wall thickness	425mm*20mm
Spud Length	17m
Spud weight	7.2t
swing winch wire rope diameter	22mm
Lifting winch wire rope diameter	24mm
trolley moveing distance	6m
Oil cylinder diameter	160mm
Hydraulic system brand	Rexroth/Huade
Anchor weight	400kg

36000.000kg Package Gross Weight River Sand Suction Dredger with Cutter Head and Mud Pump

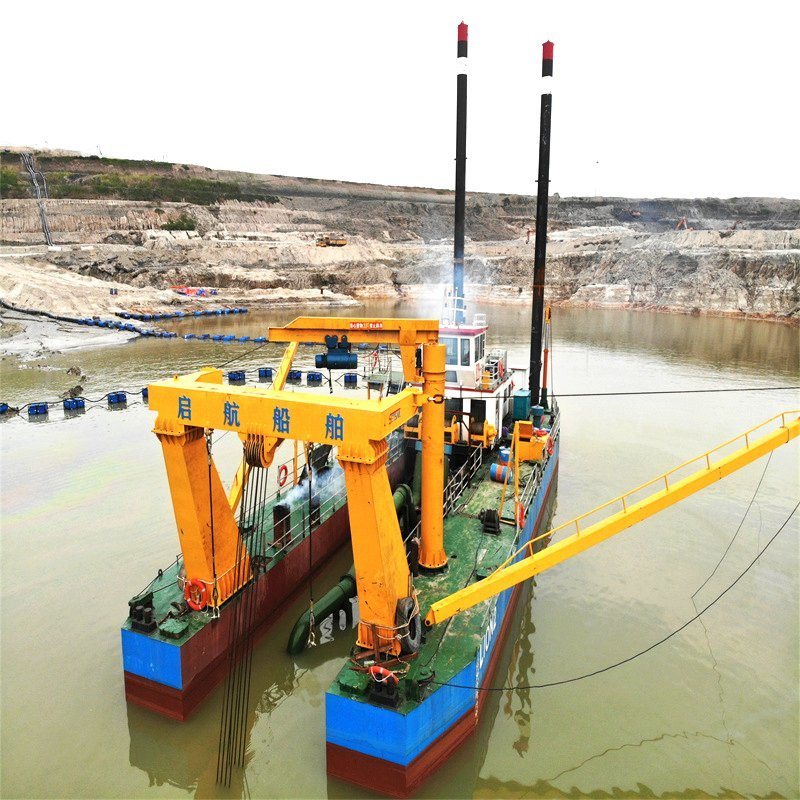

2.Product shows :
he Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both
in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland
river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering
construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the YS-CSD350 dredger
to be transported by road, rail or water. The dredger is equipped with a rapid connection disconnection system for the pontoons, achieved
using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by
a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments
such as cutter, swing and ladder winches, and the spud rams etc.

The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons
are connected to the main pontoon by means of bolts.

The hull steel plate used is CCSB (shipbuilding steel plate ) .

3.Product detailed shows :

4.Cutter suction dredger feature:

Diesel engine	Normally cummins on dredger Cater .Weichai Yuchai and other can available
Cutter head	Generally drive power hydraulic . Electric power cutter head can offer
Generator set	Cummins brand generator set Weichai brand others can available
Hydraulic system	Hydraulic control system from Germany Rexroth
PLC system	PLC adopts advanced system from Germany Siemens

5.Workshop:

6.Function of cutter suction dredge :

1	Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project
2.	Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project
3.	Cutter suction dredger can match the mining machinery to get the gold and diamond etc.
4.	Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project
5.	Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site.

7.Factory introduce :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .

We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc.
