Shipping Cost and Capacity 16 Inch Cutter Suction Dredger for Bangladesh River Sand

Model NO. : QHCSD-506

Slot Type : CTD

Customized : Customized

Condition : New

Warranty : 2year

After-sales Service : Lifelong

Total Length : 16 Meter

Main Engine Brand and Power : Cummins 582 Kw

Auxiliary Engine Power : Cummins 224 Kw

Generator Power : Cummins 30 Kw

Maximum Dredging Depth : 13 Meter

Inner Pipe Diameter : 400mm

Water Flow : 2500 Cubic Meter

Capacity : 500 Cubic Meter

Discharge Distance : 1500 Meter

Cutter Head Diameter : 1450mm

Cutter Head Power : 108kw

Bottom Plate Thickness : 10mm

Side Plate Thickness : 8mm

Deck Plate Thickness : 8mm

Front Plate Thickness : 14mm

Transport Package : Canvas

Specification : 16 inch cutter suction dredger

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 750.00cm * 200.00cm

Package Gross Weight : 90000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 2000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

16 inch cutter suction dredger used in Bangladesh river sand

Cutter Suction Dredger is self-propelled or non self- pro-pelled. portable cutter suction dredger.Hull can be dis-mantled and re-assemble easily with box structure.Equipped with horizontal shifting devices.cutter ladder lifting devices. spud devices. deck crane and so on.Widely used in sand-excavating.river dredging. desilt-ing.Reclamation for channels and land port construction. etc.

Shipping Cost and Capacity 16 Inch Cutter Suction Dredger for Bangladesh River Sand

Mainly features:

1	Cutter suction dredger is suitable for inland waterways. lakes. rives of dredging.
2	Standard design. allowing early delivery and low price.
3	Cutter suction dredger has advantages of high output. low cost and convenent rapare.
4	Completely assembled and fully tested before delivery.
5	Cutter suction dredger adopt hydeaulic system. this system is very steady. it isn't easy to appear failure.
6	Simple rapid assembly and dismantling.
7	Ready for operation on arrival at site.
8	Dredging pump adopt diesel engine to transmission.the power is stonger and steady.
9	Spare parts available from stock.
10	Transportable by road. rail or sea.
11	Reliable hydraulic system.
12	Efficient fuel consumption.

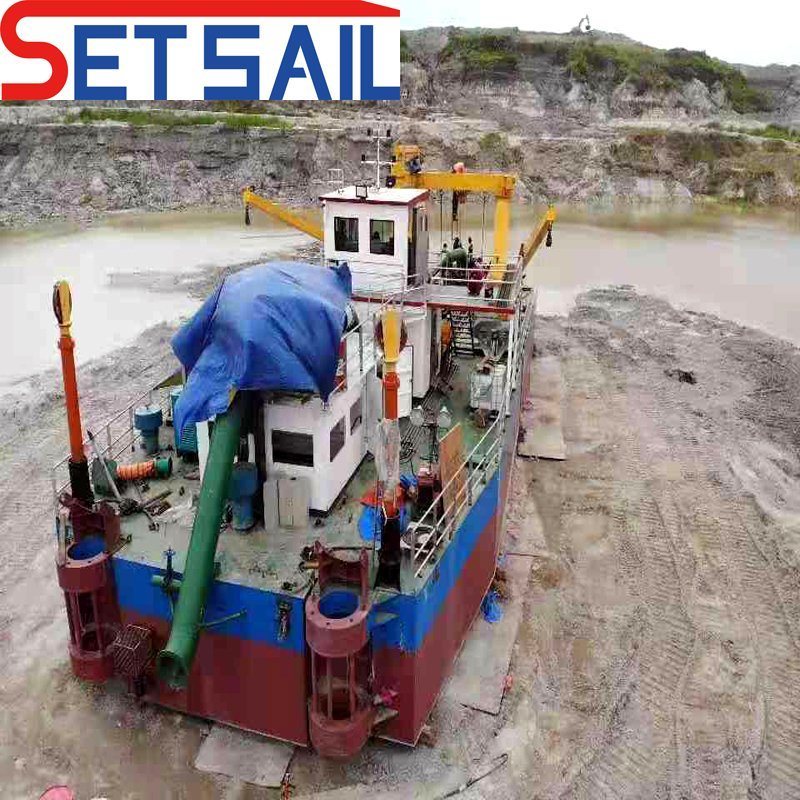

16 inch dredger image:
Hydraulic cutter head to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cummins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .

Detailed parts introduce :

16 inch dredger basic information :

Dredger Loa	32.0m
Hull Size(LBH)	19.0×7.5×2.0m
Main pontoon(LBH)	13.8×3.5×2.0m
Side Pontoon(LBH)	19.0×2.0×2.0m
Structure	Box-structure
Main Engine Brand&Power	Cummins 582kw/Jichai 540Kw
Auxiliary enging power	Cummins 224kw
Harbour Generator	Cummins 30kw/Jichai 30kw
Total Power	Cummins 836kw/Jichai 790kw
Dredging Pump	WarmTechnology
Discharge Pipr Inner Dia.	400mm
Head	45m
Max.Dredging Depth	13m
Water Flow	2500m³/h
Solid Sand Capacity	500m³/h
Cutter head diameter	1450mm
Cutter head power	108kw

Dredger at installation site :

Dredger packing and transportation :

Our service :

1	offer the solution and design before the sale.
2	Inquiry and consulting support.
3	Sample testing support.
4	View our Factory.
5	Training how to instal the machine, training how to use the machine.
6	Engineers available to service machinery overseas.

Our customer:

Company overview:

1	More than 25 years experience
2	More than 120 certificated engineers and technicians
3	Cooperated with famous ship design & research institute and Ocean University
4	Exported to more than 80 countries in all over the world

Question for customer:

1	The capacity of the output per hour?
2	The max.dredging Depth ?
3	The max. discharge distance ?

Shipping Cost and Capacity 16 Inch Cutter Suction Dredger for Bangladesh River Sand Images
