10inch Cutter Suction Dredger with ISO Certification and Affordable Shipping Cost

Model NO. : 10inch-30

Slot Type : CTN

Customized : Customized

Condition : New

Warranty : 2 Year

After-sales Service : Lifelong

Dredging Depth : 8 Meter

Solid Capacity : 300 M3

Discharge Distance : 1000 Meter

Total Weight : 90 Ton

Total Length : 31.1 Meter

Total Width : 5.5meter

Total Height : 1.48meter

Sand Pump Brand : Shijiazhuang

Water Flow : 1500m3

Head : 53 Meter

Main Engine Power : Cumins 456kw

Auxiliary Engine Power : Cumins 122kw

Cutter Head Diameter : 1200 mm

Cutter Head Power : 64kw

Hydraulic Brand : Rexroth

Transport Package : Canvas

Specification : 10inch cutter suction dredger

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 500.00cm * 150.00cm

Package Gross Weight : 90000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 5000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

China low price 10inch cutter suction dredger with ISO Certification

1.Cutter suction dredger brief:
10 inch cutter suction dredger is small size cutter suction dredger . it is water flow is 1500 cubic meter per hour to reach solid capacity about 300 cubic meter per hour . accurator solid capacity depend on the matrial situation .water flow meter . pressure meter concentration meter are the noral configuration except the normal configuration we can match DGPS dredging auxiliary system and video mornitoring system anchor rod and carriage so on .

1	Main engine and auxiliary engine from US and UK .we can according to your request to offer engine brand.
2	Hydraulic control system from Rexroth.
3	Slurry pump from Kingda.
4	PLC system from Siemens.
5	Bushes/Shaft from NSk -Japan.
6	Sealing from parker -America.

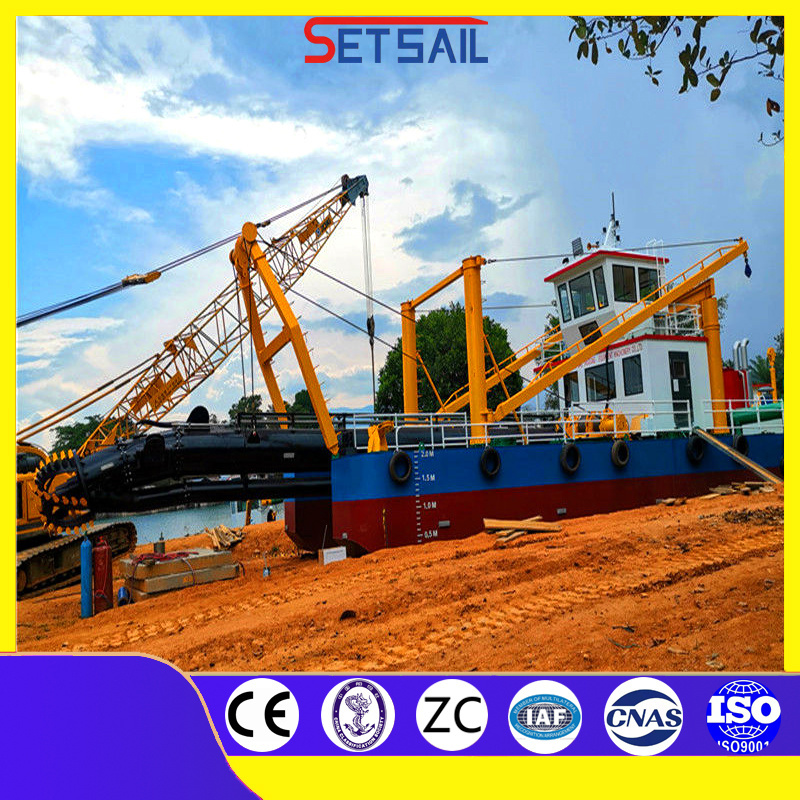

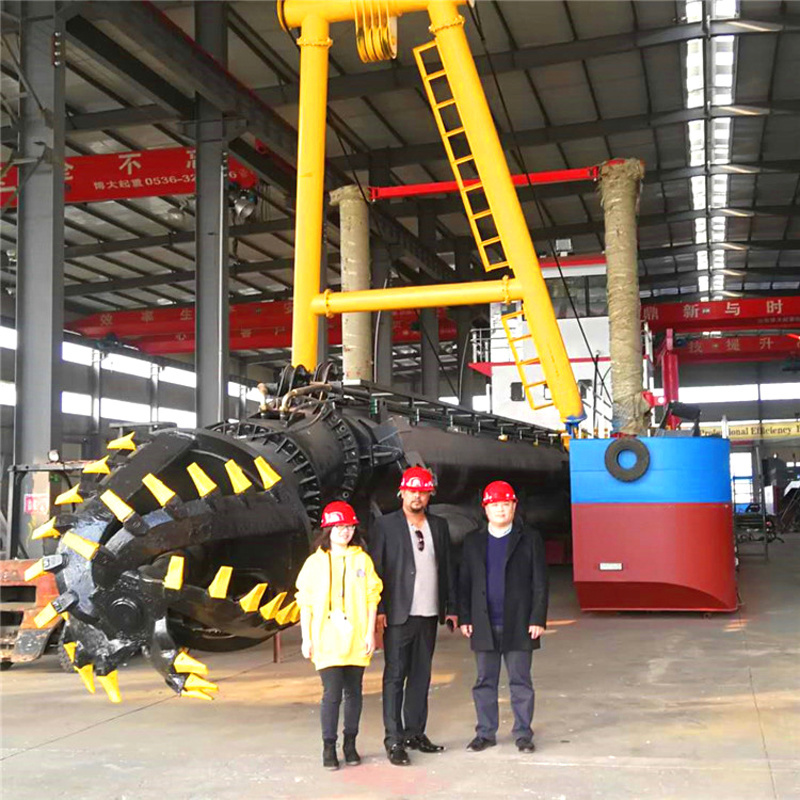

2. 10inch cutter suction dredger pictures:
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cumins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .

Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery ..

10inch Cutter Suction Dredger with ISO Certification and Affordable Shipping Cost

3. 10inch dredger main parts introduce :

1	Main auxiliary Engine brand	Cumins
2	Main/auxiliary engine power	456/122kw
3	Speed	1500/1800/r/min
4	Cooling way	Water cooling way

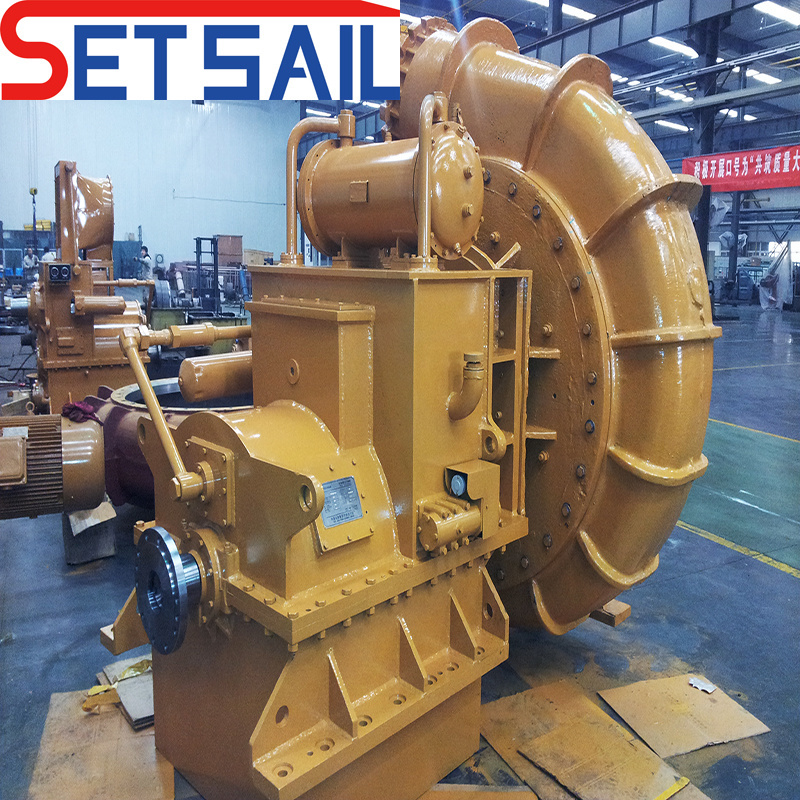

1	Water flow	1500m3
2	Head	53m
3	Speed	720r/min
4	Efficiency	76.75%
5	Suction /discharge pipe size	350mm

1	Diameter	1200mm
2	Speed	11/22/33
3	Cutter power	64kw

4. 10inch dredger basic parameter :

1	Solid capacity	300 cubic meter
2	Discharge distance	1000 meter
3	Total weight	90 ton
4	Total length	31.1 meter
5	Total width	5.5 meter
6	Total height	1.48 meter
7	Sand pump water flow	1500 cubic meter
8	Suction /discharge pipe size	350mm
9	Main engine brand /power	Cumins/456kw
10	Auxiliary engine brand/power	Cumins/122kw
11	Cutter head diameter	1200mm
12	Cutter head speed	11/22/33 r/min.
13	Cutter head power	64kw

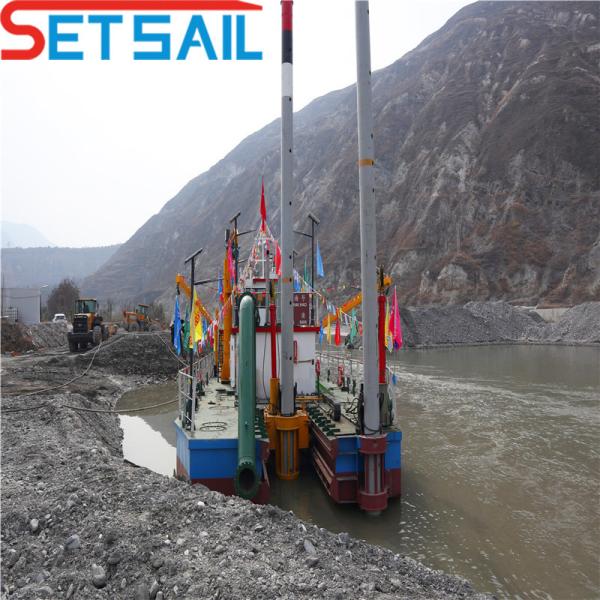

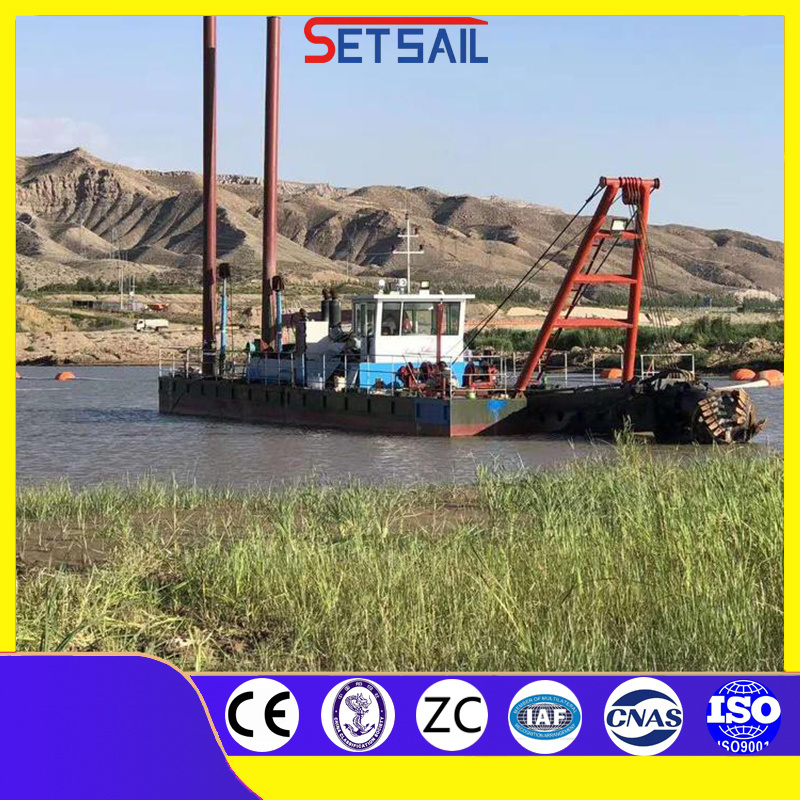

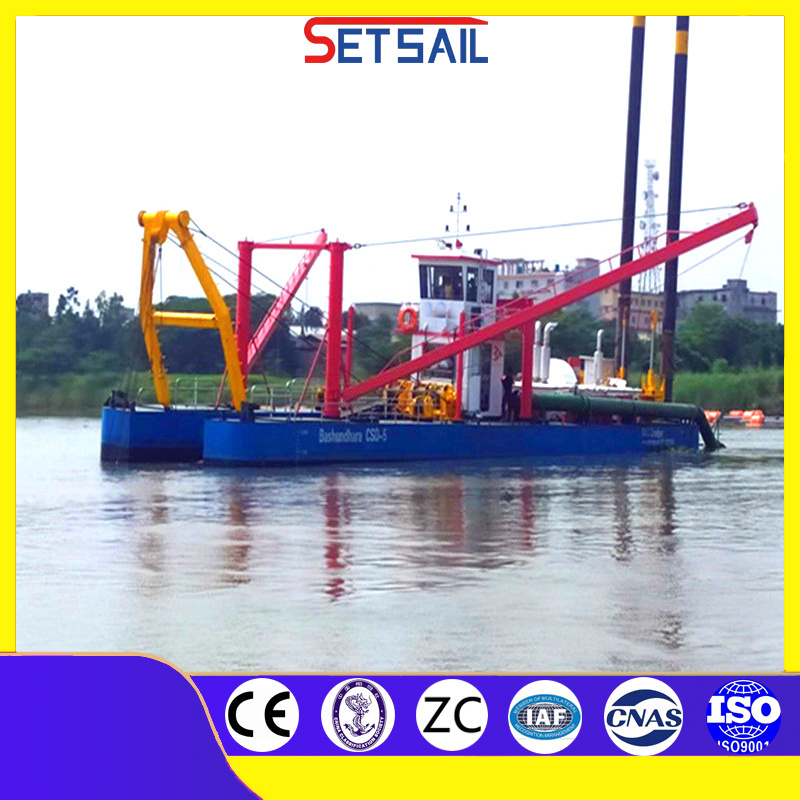

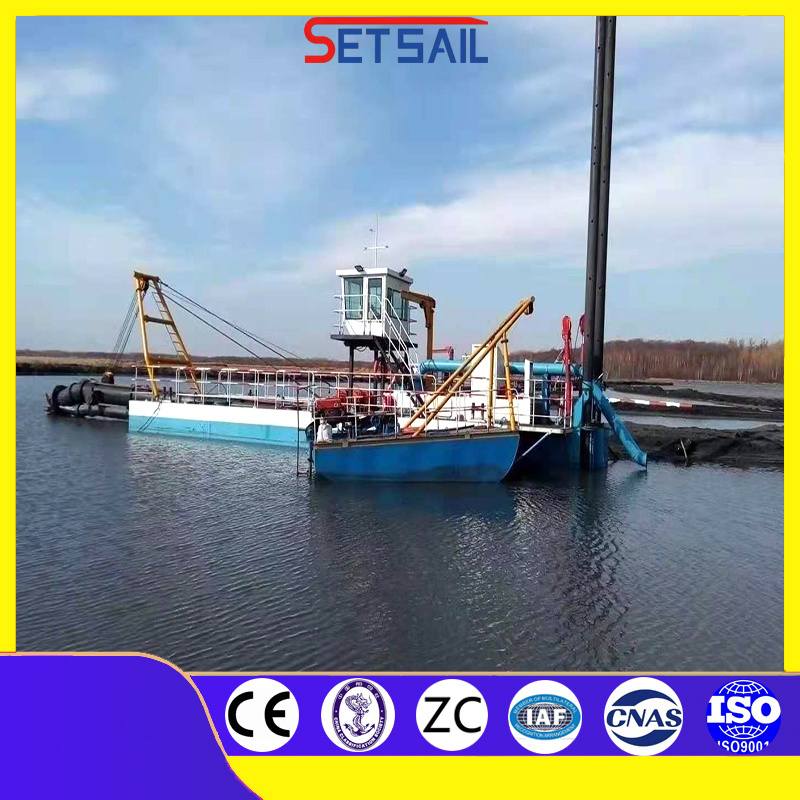

5.Dredger in work site :

6.Advantage :

1	Make high depther dredger . especially is electrical underwater pump can reach the steadier performance .
2	Advanced detail design. from point to surface are according to the actual situation to design.
3	Configuration pretty rich. Anchor boom . carrirage. depth sounder meter .water flow meter . concentrate meter so on .
4	Long discharge distance . according all dredger working situation to reasonable design to save the budget for customer.

7.Our customer :

8. Our service :

1	Help the customer to solve the any failure in time .
2	Cost for Offering the full spare parts
3	Low salary for Sending the engineer to the abord
4	Long time quality warrant

9. FAQ:

1	You are factory ?	We are factory we can offer the lowest quotation .
2	You factory ability?	Our factory has works more than 100 . over 20 engineers in research development team
3	Do you have many abord cutomers?	Bangladesh. Nigeria. Malaysia. The Philippines. In Indonesia. Chad. Guinea. more than 100 contries .
4	You can offer the dredger working site abord?	Yes . we can offer the working site for visitting .
5	Your can offer the all certification ?	We have full certifications Such as ISO . CE SO ON
