Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

Model NO. : QHCSD-235

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 1year

After-sales Service : Lifelong

Dredging Depth : 18m

Capacity : 1400m3

Discharge Distance : 1500m

Total Weight : 360t

Total Width : 10.2m

Total Height : 2.7m

Pump Size : 600ND

Water Flow : 7000m3

Discharge Pipe Diameter : 700mm

Main Engine Power : 1620kw

Auxiliary Engine Power : 700kw

Engine Brand : Cumins

Cutter Head Power : 450kw

Cutter Head Diameter : 2400mm

PLC : Siemens

Transport Package : Canvas

Specification : Total length 46m

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3900.00cm * 860.00cm * 200.00cm

Package Gross Weight : 180000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 450000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Underwater pump water flow 7000m3 cutter suction dredger for lake

1.Cutter suction dredger expression :

Set Sail brand cutter suction dredger is self-propelled and non self propelled . it adopts dismantled and box structure .cutter suction dredger power from diesel engine with hydraulic control system or full of the electric power . Normally the power from the diesel engine power to drive the pump and all hydraulic system . all device use the famous brand : Cumins diesel engine. Shijiazhang industrial slurry pump .Rexorth hydraulic system . Siemens PLC system etc . our factory also offer the other brand according to the customers requirements and customize the all kinds of dredging machinery.

Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

2.Cutter suction dredger application :

1.	Cutter suction dredger is widely used the river and lake for dredging project . it process the sand and mud and the other mixture
2	Cutter suction dredger is used for the inland waterway construction
3	Cutter suction dredger can work for mining project match the collection mining machinery to get the gold. diamond and others
4	Cutter suction dredger can match the sand washing production line to get the clean sand
5	Cutter suction dredger can construct the pork and dredging reservoir project .
6	We can do the special cutter suction dredger to suit the sea working site .

3.Cutter suction dredger shows : all product are from our factory

4.Detailed introduce :
All parts on my cutter suction dredger adopts reliable and durable international brand to reach the low failure high efficient. Offering the biggest profit for customers.
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

5. 22inch cutter suction dredger basic parameter:
Remark : except the above basic model water flow 7000 cubic meter to 20000 cubic meter are available.

Item / Information	Diesel power water flow 7000m3 24 inch cutter suction dredger
Maily electric motor power	1620kw
Auxiliary electric motor power	700kw
Water flow	7000m3
Concentration	20%
Capacity	1400m3/h
Cutter head diameter	2400mm
Cutter head power	450 kw
Cutter teeth quantity	50 piece
Cutter head motor brand	XHS7C7-4300*5.5
Pump size	500ND
Discharge pipe diameter	600mm
Dreding depth	18m
Discharge distance	1500m
Hydraulic brand	Rexroth
PLC	Siemens

6.Successfully case :
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

7.Set sail service :

1	Professional team offer the profession service throughout .
2	Professional salesmen and engineer can provide the precise design and timely and efficiency communication.
3	All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing .
4	Before production we can send the engineer to the on site to collect the information
5	Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally .
6	We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign

8.Set sail cutter suction dredger packing and transportation :
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

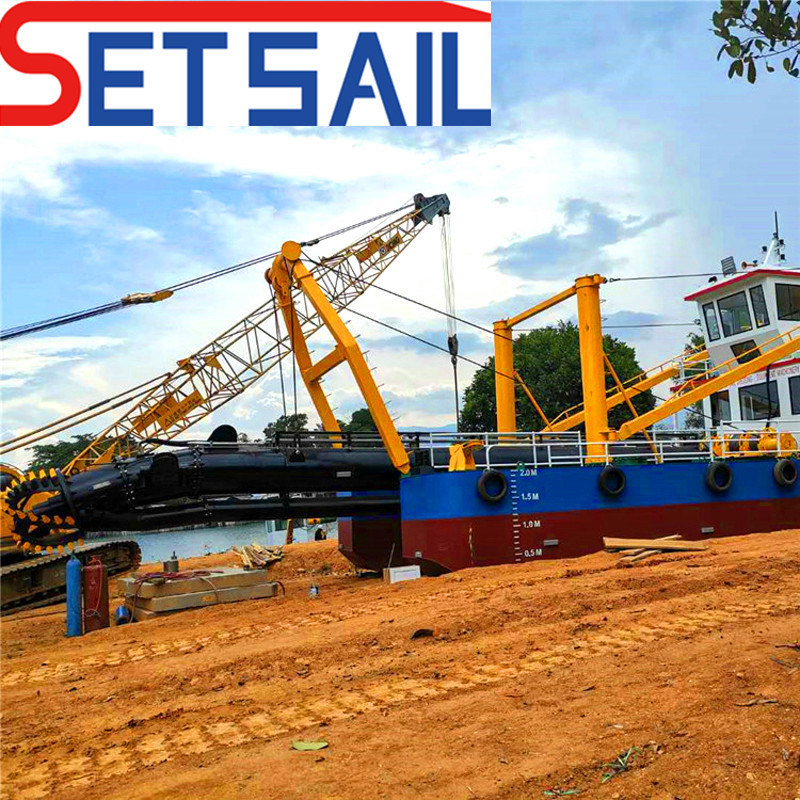

9.Cutter suction dredger installation site:
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

10.Customer visit our factory :
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

11. Customer feedback:
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

11.Factory profile and main product :
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

12.Set Sail dredger certification :
Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US

Underwater Pump Water Flow 7000m3 Cutter Suction Dredger for Lake High Flow and US Images
