Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine

Shandong Jinrui Shipbuilding Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine

Model NO. : QHCSD-333

Slot Type : CTN

Customized : Customized

Condition : New

Warranty : 2 Year

After-sales Service : Lifelong

Diesel Engine Brand : Cumins . Weichai

Hydraulic System Brand : Rexroth

PLC System Brand : Siemens

Water Flow : 6000 Cubic Meter

Capacity : 900-1200 Cubic Meter

Maximum Dredging Depth : 20 Meter

Maximum Discharge Distance : 2000 Meter

Total Length : 39 Meter

Hull Size : 28*8.8*2.25 Meter

Discharge Pipe Inner Diameter : 600mm

Cutter Head Diameter : 2000mm

Cutter Head Power : 260kw

Main Engine Power : 1620 Kw

Auxiliary Engine Power : 405 Kw

Total Fule Consumption : 350L

Transport Package : Canvas and Container

Specification : 26 inch cutter suction dredger

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3900.00cm * 860.00cm * 225.00cm

Package Gross Weight : 230000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 4000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

  : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001,ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Shijiazhuang sand pump diesel engine 26 inch cutter suction dredger
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Set Sail cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting mechanism loosens the bed material and transports it to the suction mouth. The material is usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to a barge. Cutter suction dredgers are most often used in geological areas consisting of hard surface materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be ineffective. They can be used instead of underwater blasting.
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together)
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
All parts on my cutter suction dredger adopts reliable and durable international brand to reach the low failure high efficient. Offering the biggest profit for customers.
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Technical Specification

Item Name Descriptions /Specifications
Clear water flow per hour 5000 cubic meter
Production Capacity (solid) 750-1000 cbm/hr for medium sand at a distance of 2000 m.
Slurry concentration, %
Min 15%, Max 20%
Discharge distance (max) Max 2000 m
Dredging depth at 45 degree 45 15 m
Min. dredging depth 1.4m
Inner Diameter of suction pipe 700mm
Inner Diameter of discharge pipe 600mm
Average Draught 1.25m
Maximum draught 1.5m
Total weight 230Ton
Main engine power 1620kw
Auxiliary engine power 405kw
Total installed power 2025KW
Fuel tank capacity 60Ton
Delivery time 100days

cutter suction dredger main components introduce :
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
26 inch cutter motor is hydraulic driven low speed and high torque heavy duty design. The cutter motor is installed on the cutter front piece on the ladder end. A special cover is provided to protect the hydraulic motor from damage due to sand .rocks and debris. The cover can be removed from easy inspection and maintenance.

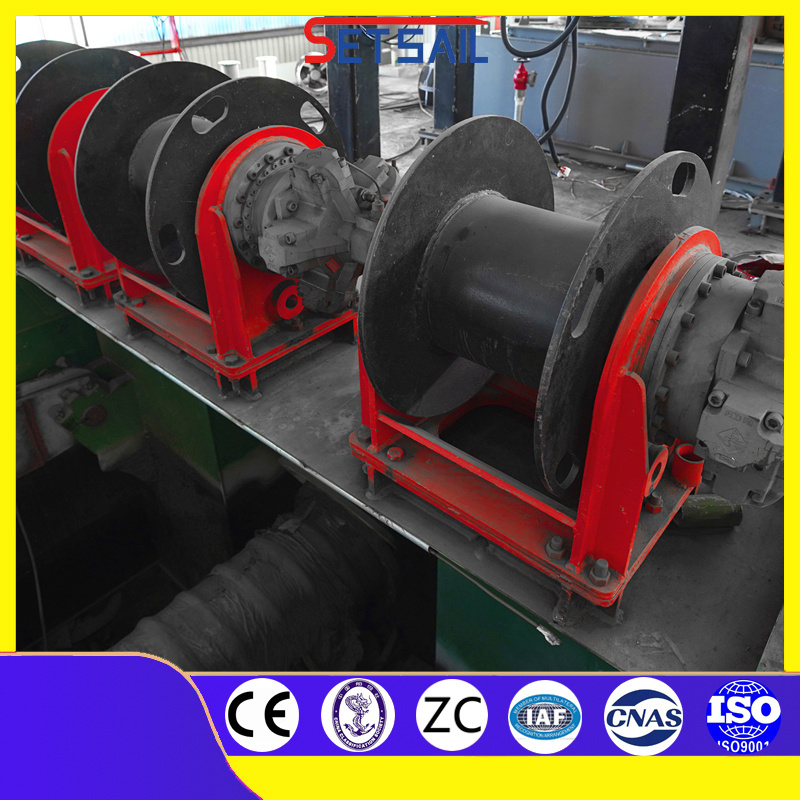

26 inch cutter suctin dredger ladder winch and side pull winch, two winches are provided on the front of the main pontoon The winch is hydraulically driven through a reduction gearbox build in the winch structure. The winch is operated from the control cabin and has variable speed.
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine
26 inch cutter suction dredger Hydraulic system is the most important parts of river sand dredger . The hydraulic system requirements pressure are very high and strict; it's the main artery of the entire sand mining dredge. swing winches, lifting winch and cutter head of the dredgers are driven by hydraulic motors. Rexroth hydraulic system is used on my 6 inch cutter suction dredger

The impeller is fitted on the shaft by trapezoid thread directly machine on the shaft end. The shaft sealing is a water cooled sealing that can be replaced after wear life. The impeller is a special type of double curved vanes high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The impeller is fixed on the shaft by trapezoid thread machined directly in the impeller hub.

The pump casing has a shape of a volute designed of a high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The pump liners are made of high wear resistant materials and thick wall thickness to maximize the wear life. The casting covers are made from fabricated steel stiffened where necessary and machining to fit the case and the liners.

Customizable 26 Inch Cutter Suction Dredger with Hydrocyclone Sand Pump Diesel Engine


Our services
1 Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCumins and others.
2 supply one year's guarantee for the whole dredger except the wear spare parts.
3 supply after-sales installation. trial operation. training the operators. maintence and other services.
4
we can offer the lifetime cost price accessories and technical support
