1 Piece Min.Order Hydraulic Control 22 Inch Cutter Suction Dredger for River Sand

Model NO. : QHCSD-398

Slot Type : CTN

Customized : Customized

Condition : New

Warranty : 2year

After-sales Service : Lifelong

Engine Brand : Cumins

Hydraulic Brand : Rexroth

Generator Sets Brand : Cumins with Stanford

Configuration : Pressure Meter .Depth Meter Anchor Boom

Pump Brand : Shijiazhuang

PLC Brand : Siemens

Structure : Box -Structure

Total Length : 38m

Main Engien Power : 1193kw

Auxiliary Engine Power : 298 Kw

Generator Sets Power : 40 Kw

Sand Pump : 550

Water Flow : 4500m3

Dredging Depth : 15m

Discharge Distance : 1500m

Transport Package : in Bulk with Canvas

Specification : 22 inch river sand dredger

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 3900.00cm * 860.00cm * 225.00cm

Package Gross Weight : 230000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 4000/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Hydraulic control 22 inch cutter suction dredger for river sand

22 inch cutter suction dredger introduce :

22 inch cutter suction is a normal dredger of diesel engine power hydraulic system and PLC control . Normal configuration : Cumins diesel engine . Rexroth hydraulic system . Shijiazhuang sand pump . Siemens PLC . Optional : anchor boom . underwater pump . spud carrige .depth meter . water flow meter . so on . water flow is 4000-5000 cubic meter . accroding to 20%-30% concentration to count maximun capacity is 1000-1500 cubic meter .dredging depth is 16 meter . maximun discharge distance 2000 meter .if over 2000 meter we need to add the booster station . it is widely used in all kinds of dredging project and land reclamation and port construction so on .

1 Piece Min.Order Hydraulic Control 22 Inch Cutter Suction Dredger for River Sand

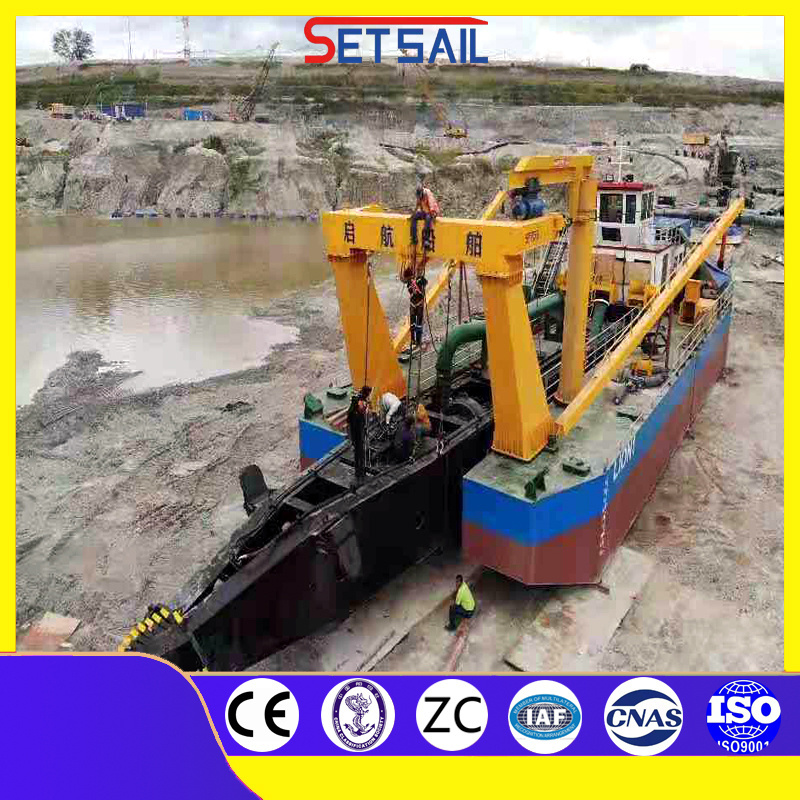

cutter suction dredger picture:

cutter suction dredger main device :

Cumins diesle engine Shijiazhuang dredging pump Hydraulic pump
Basic parameter :

Total length	38m
Main engine brand /Power	Cumins /1193kw
Auxiliary engine brand /Power	Cumins /298kw
Harbour generator	Cumins 40kw
Dredging pump	Warma technology /550 (Shijiazhuang brand )
Discharge pipe Inner diameter	550mm
Maximum dredging depth	20m
Maximum discharge distance	2000m
Clear water flow	4000-5000m3/h
Maximun capacity (Concentration 20%-30%)	800-1500 m3/h
Cutter head diameter	1700mm
Cutter head power	260kw
Hydraulic system brand	Rexroth brand
PLC system	Siemens
Total fuel consumption	229L/H

Cutter suction dredger is customized product . so we can according to your request to do the any deisgn dredger and install different brand device

Advanced 22 inch cutter suction dredger feature :

Modular design:	The pontoons and main spare parts are connected by the bolts and nuts. which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course. the delivery time will be reduced a lot by containers.
World -class spare parts:	We use the best parts like Cumins disel engine and Simmens PLC controlling system.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.
Flexible in use:	The dredgers can be adapted to different circumstance like river and lake. The material like sand. stones. mud. salt can be easily sucked and discharged to the destination place.

Range of application :

1	rivers. lakes. sea. reservoirs. port construction . land reclamation and dredging inland water way so on
2	rivers. lakes. reservoirs. pumping port dredging silt.
3	pumping sand beneficiation: Select iron sand pumping.pumping sand gold. rare earths. such as pumping sand election.
4	sewage treatment plant settling ponds cleanup.
5	municipal pipelines. storm water pumping station. hydroelectric sediment cleanup.
6	construction (sinking bridge construction. etc.) discharge of sediment. mud

Mainly spare parts introduce :

Set Sail cutter suction dredger in abroad :

Manufacture machine in factory :

After-sales service :

1	Free dredger consulting. design and product drawings
2	Site visit and factory visit are provided .send the engineer to the working site then do the accurate design
3	Arrange 2-3 senior engineers and technicians to enter the work site within 36 hours
4	Free professional assembly. training and operation to ensure a smooth operation of the dredger
5	2 year warranty. lifetime technical support
6	Sign after-sales service agreement with customer
7	Spare parts are supplied at a discounted price
8	Responsible sales team. design team. manufacturing team to provide customers with the best service 24/7.

Company introduct :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .
